5GHz Wireless Surveillance Camera Transmission System
 A total 5GHz wireless solution to traditional and PTZ outdoor CCTV Surveillance Cameras

Shepherd 200 Features

• A fully integrated all in one solution
• 5GHz OFDM for reduced interference
• Wireless transmission of up to 5 kilometers
• 12+ Mbps TCP/IP throughput
• MPEG4 Compression
• Provides a stable wireless link
• Digital Image Processing cuts out signal ripple and snow
• Advanced security provided by AES or RC4 key encryption
• Proprietary serial data transmission for RS485 PTZ control
• User-selectable transmission power and distance
• MagicLink software for quick system configuration
• 2 DI/DO sockets for alarms, sensors and PIR detectors (*option)
• Supports NTSC and PAL Video (D1 resolution at 30 fps)
• No signal interference between cameras
• LED panel for quick check of signal strength
• Passive POE power source
• IP65 Enclosure
• Compatible with legacy DVR and PTZ systems
• No IP address requirements (*Note 1)
• Easy installation and mounting

　

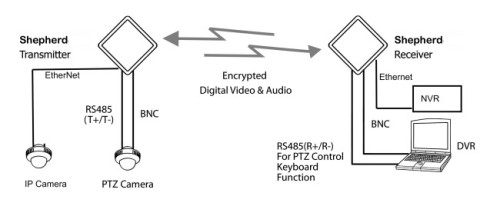

Shepherd 200 CCTV Camera and IP Camera Hybrid Application

One System to transmit both CCTV Camera signal and IP Camera data.

Shepherd saves memory and time to set up long distance surveillance system then other products.

　

Shepherd 200 Long Distance Advantage

Tx Power (dBm)		Rx Sensitivity (dBm)		Radio Rate (MBps)	Effective Bandwidth (Mbps)
Shepherd	Others	Shepherd	Others
27	18	-74	-65	54	24
27	18	-77	-66	48	22
27	18	-83	-70	36	17
27	18	-86	-74	24	12
27	18	-90	-77	18	10
26	17	-91	-79	12	8
24	15	-93	-81	9	6
23	14	-94	-82	6	4

　

　

　

　

　

　

Shepherd has longer communication distance because Shepherd has better Tx power and Rx sensitivity.

　

Sales Information

For a detailed data sheet and specification schedule,
please contact us at
Markets information: sales@derytech.com.tw
General information: info@derytech.com.tw

NOTE: 1. Under single point to single point mode.
